• Taillamps, with incandescent tail, stop and reverse lights (Note: Trucks equipped with dual rear wheels will feature LED signature tail and stop lamps, with incandescent reverse lamp.)
• 18" LT275/70R18E all-terrain, blackwall tires
• IntelliBeam
  • At speeds above 25 mph, can automatically turn vehicle's high beams on and off according to surrounding traffic conditions
• Moldings, beltline, Black
• Tailgate and bed rail protection cap, top
• Cargo tie downs (12), fixed, rated at 500 lbs per corner (Deleted with (ZW9) pickup bed delete.)
• Lamps, cargo area cab mounted integrated with center high mount stop lamp, with switch in bank on left side of steering wheel
• Mirror caps, Black
• Single Rear Wheels (STD)

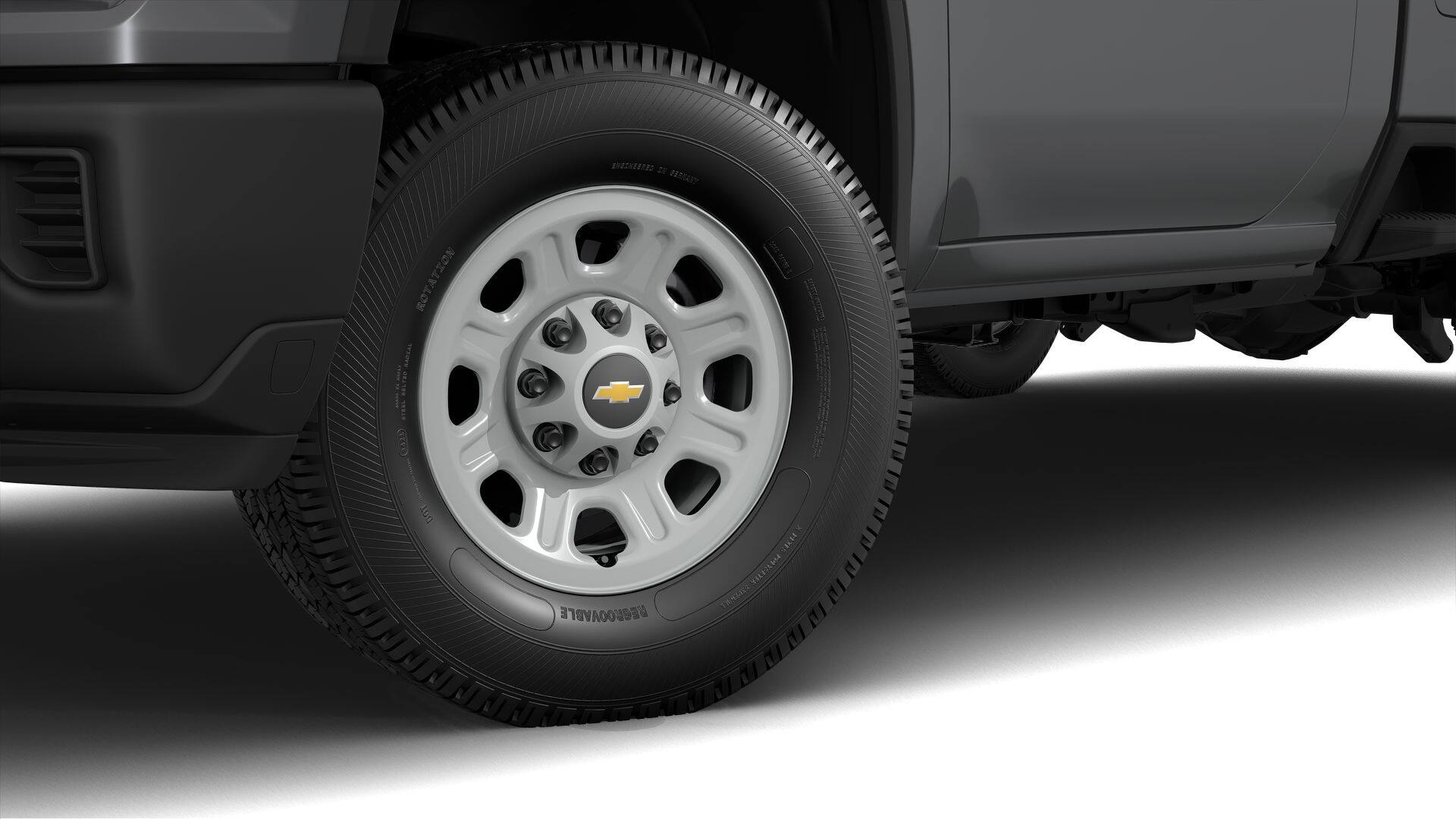

• 18" steel painted Silver wheels
  • May require additional optional equipment
• Halogen headlamps
  • Dual halogen projector lamps help provide more even light distribution for improved visibility
  • Twin reflectors
  • Includes integrated daytime running lamps
• Black door handles
• BedStep, Black integrated on forward portion of bed on driver and passenger side (Deleted when (ZW9) pickup bed delete is ordered.)
• Black front bumper
• 18" LT275/70R18 all-terrain, blackwall spare tire
  • May require additional optional equipment
• Bumper, rear, delete
• Black outside power-adjustable mirrors
  • Driver side includes convex mirror (passenger side includes flat glass)
  • Heated
  • Manual folding/non-extending
  • May require additional optional equipment
• Sterling Gray Metallic
• Single Rear Wheels (STD)
• Smoked Amber LED roof marker lamps
  • Roof-mounted lamps near the front of the cab
• Deep-tinted glass
  • Provides added protection from sun and glare

• Inside rearview manual day/night mirror
  • Adjust the tilt of the mirror to help reduce glare during nighttime driving
• Seat trim, Vinyl
• Remote Keyless Entry
  • Allows you to lock and unlock doors of the vehicle with the key fob
  • Driver's door or all doors unlock at the touch of a button
  • Includes remote locking tailgate
• 4-way manual driver seat
  • Can be positioned forward or back and up or down
• Power windows with front passenger express-down
  • Quickly lowers the window with the touch of a button
  • If an obstruction is detected, the anti-pinch feature will auto-reverse
• Power windows with driver express-up/down
  • Quickly raises the window or lowers it with the touch of a button
  • If an obstruction is detected, the anti-pinch feature will auto-reverse
• 4-way manual front passenger seat
  • Can be positioned forward or back and up or down
• Chevrolet Connected Access capable
  • Subject to terms. See onstar.com or dealer for details.
• Single-zone climate control
  • Maintains a selected temperature
  • Manual
• Charge / Data USB ports
  • Located on instrument panel¹
• Exterior Temperature Display located in radio display
• 40/20/40 split-bench front seat with under-seat storage
  • Seating for up to 3
  • Driver and front passenger seatbacks recline
  • Head restraints at the outboard seating positions
  • Center seatback that doubles as a fold-down armrest with storage
• Rubberized vinyl floor covering
  • Provides good traction and convenient cleanup
• Assist handles front A-pillar mounted for driver and passenger, rear B-pillar mounted
• Compass, located in instrument cluster
• 3.5" diagonal monochromatic Driver Information Center
• Power door locks
  • Programmable
  • Allows you to lock and unlock doors easily whether it's from the driver or front passenger seat or from outside using the key fob (when equipped)
• Steering wheel
• 12-volt auxiliary front power outlet
• Back-up alarm calibration This calibration will allow installation of an aftermarket back-up alarm by disabling rear perimeter lighting
• Manual tilt steering column
  • Allows the steering wheel to be manually adjusted up or down
  • Provides extra comfort when entering or exiting the vehicle
  • Locking security feature
• Upfitter switches
  • Program electrical components such as exterior lighting, snow removal equipment or other features to turn on and off at the flip of a switch
  • Allows the driver to operate upfitter-installed equipment conveniently from inside the cab
  • Provides 3-30 amp and 2 – 20 amp configurable circuits to facilitate installation of aftermarket electrical accessories by the dealer or upfitter¹ at customer expense
  • Installation instructions and technical assistance available at www.gmupfitter.com
• Cruise control
  • Maintains a selected speed while driving
  • Automatically disengages when the vehicle's traction control system needs to limit wheelspin on slippery surfaces or when the StabiliTrak^® stability control system detects an oncoming skid
  • Set and resume speed functions
  • Steering-wheel mounted controls to easily maintain and manage cruising speed
• Jet Black, Vinyl seat trim
• Rear window defogger
  • Helps to keep your rear view clear of fog or frost
  • Utilizes a warming grid to help remove fog or frost from the rear window

• 170-amp alternator
• Heavy-Duty Air Filter
  • Thick construction helps to trap more dirt before it can enter the air intake
• Brake pad wear indicator
• Steering, Recirculating ball with smart flow power steering system
• Black recovery hooks
  • Two front frame-mounted¹
• Frame, fully-boxed, hydroformed front section and a fully-boxed stamped rear section
• Suspension Package
  • Designed to help maintain handling and ride quality while towing a trailer or carrying a load
• Single-outlet exhaust
• Push Button Start
• 4-wheel antilock disc brakes
  • Help reduce wheel lockup and maintain steering control during hard braking on most slippery surfaces
  • DuraLife^™ brake rotors feature a hardened surface to reduce corrosion and provide quieter braking with less vibration. DuraLife^™ rotors are hardened and strengthened during the manufacturing process
  • Brake system features a corrosion-fighting process called Ferritic Nitro-Carburizing (FNC) which can double rotor life expectancy and reduce or minimize rust over non-FNC coated rotors
• Electronic shift 2-speed transfer case with push button controls
  • System shift smoothly between drive settings to handle a variety of road conditions
  • 2WD High for most on-road and highway situations
  • 4WD High for snowy or wet roads when added traction is needed
  • 4WD Low for deep sand, mud or snow to provide maximum torque to all 4 wheels
  • Neutral
  • ONLY used for towing vehicle (Dinghy tow capability)- allows vehicle to roll freely
  • May require additional optional equipment
• 11,300 lbs. GVWR
  • When properly equipped; includes weight of vehicle, passengers, cargo and equipment
• Four wheel drive
• Automatic locking rear differential
  • When the differential senses a significant difference in wheel speed, it locks to turn both rear wheels in unison for added traction
  • The Eaton^® Locker senses a difference in wheel speed of approximately 100 rpm
• Pickup bed delete
  • Deletes pickup bed, tailgate, tailgate lock, rear bumper, spare tire and tire carrier lock
  • Includes capped fuel fill and backup alarm calibration
  • May require additional optional equipment
• Integrated trailer brake controller
  • Integrated with the antilock brake system (ABS)
  • Helps provide measured brake force signaling to electric-controlled trailer brake systems
  • Trailer gain and output are displayed in the Driver Information Center
  • May require additional optional equipment
• Capped Fuel Fill
• Emissions override, Federal
• Emissions, Connecticut, Delaware, Maine, Maryland, Massachusetts, New Jersey, New York, Oregon, Pennsylvania, Rhode Island, Vermont and Washington state requirements

• Work Truck Convenience Package
  • Cruise control
  • EZ Lift power lock and release tailgate
  • Tinted glass
  • Rear-window defogger
  • Black outside power-adjustable vertical trailering mirrors
• Work Truck Preferred Equipment Group includes standard equipment

• Daytime Running Lamps with automatic exterior lamp control

• 3 Years of OnStar^® Remote Access
  • The OnStar Remote Access Plan¹ lets you start or stop your vehicle, lock and unlock doors, even check the fuel level and tire pressure (depending on vehicle equipment) – all from your smartphone²
• Lane Departure Warning
  • Alerts you when it detects that you are unintentionally drifting out of detected lane lines¹
  • System alerts do not occur if you're using your turn signal, or it detects you may be intentionally leaving your lane
• Forward Collision Alert
  • Warns you if it detects a potential collision with a detected vehicle you're following so you can take action¹
  • Can also provide a tailgating alert if you're following a vehicle much too closely
• Buckle to Drive
  • Helps remind the driver to buckle their seat belt before driving by preventing the vehicle from being shifted out of PARK temporarily when the driver's seat belt is not buckled
  • Also reminds the front passenger to buckle up
• 6 airbags
  • Dual-stage frontal airbags for driver and front outboard passenger¹
  • Seat-mounted side-impact airbags for driver and front outboard passenger¹
  • Head-curtain airbags for outboard seating positions¹
  • Includes front outboard Passenger Sensing System for frontal outboard passenger airbag and illuminates a status light that indicates whether the airbag is on or off¹
• Following Distance Indicator
  • Displays the following time in seconds between your vehicle and a detected vehicle in front of you¹
  • Designed to help you maintain a safe following distance
• Tire Pressure Monitoring System with Tire Fill Alert
  • Monitors tire pressure and alerts of an under-inflated condition in one or more of the tires¹
  • Provides visual and audible alerts outside the vehicle when inflating an under inflated tire to the recommended tire pressure
• OnStar^® & Chevrolet Connected Services capable
  • Terms and limitations apply. See onstar.com or dealer for details.
  • Terms and limitations apply. See onstar.com or dealer for details.
• Teen Driver
  • Helps encourage better driving habits for teens by providing an in-vehicle report card¹
  • Activates certain safety systems, if equipped, when a Teen Driver-designated key fob is used
  • Mutes the radio until the front-seat occupants fasten their seat belts
• Rear Camera Kit Kit includes camera, fixed position bracket & 19 ft cable with attachment clips. Rear camera radio calibration provided from the factory. See Upfitter Integration Bulletin for installation instructions at www.gmupfitter.com

• Automatic Emergency Braking
  • Can help you avoid or reduce the severity of a collision with a detected vehicle you're following using camera technology¹
  • Works at speeds between 5 and 50 mph
• Front Pedestrian Braking
  • At speeds between 5 and 50 mph, can help you avoid or reduce the severity of a collision with a pedestrian it detects directly in front of you¹
  • Provides pedestrian alerts and can automatically provide hard emergency braking or enhance driver's hard braking
  • Limited nighttime and low visibility performance
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist

WT Convenience Package

• DriveType
• DriveType: Four Wheel Drive
• Fuel Economy
• City: 0 MPG
• Hwy: 0 MPG
• Combined: 0 MPG
• Fuel System
• Fuel System: Direct Injection
• Fuel Tank Capacity
• Fuel Tank Capacity: 36 gal
• Fuel Type
• Fuel Type: Gasoline Fuel
• Horse Power
• Horse Power: 401
• Rear Wheel
• Rear Wheel: Single
• Trailering Capacity
• Trailering Capacity: 14500 lbs
